Solid State Drives Hi-Speed 2.5 Flash Disk SATA 6000 (end of life)

InnoDisk FiD 2.5 SATA 6000 products provide high capacity flash memory Solid State Drive (SSD) that electrically complies with Serial ATA (SATA) standard. InnoDisk FiD 2.5 SATA 6000 support SATA II standard (3.0GHz) with high performance. Sustain read is 60 MB per second, and sustain write is 40 MB per second. InnoDisk FiD 2.5 SATA 6000 uses standard 2.5-inch form factor, which can be used in laptop. InnoDisk FiD 2.5 SATA 6000 is also designed for industrial field. The SSD have good performance, and have small latency time. It effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD). InnoDisk FiD 2.5 SATA 6000 can work in harsh environment. The SSD is vibration resistance, and can work in lower or higher temperature than HDD. InnoDisk FiD 2.5 SATA 6000 complies with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.

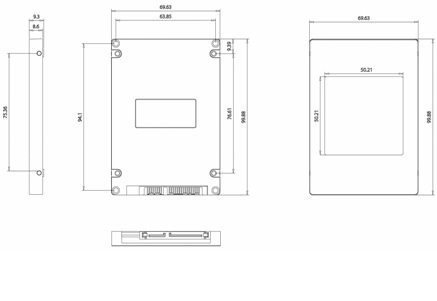

Burst Transfer Rate : 3Gbps Sustained Read : 60MB/sec Sustained Write : 40MB/sec Average Latency : 0.4 ms DC Input Voltage: +3.3V/+5V Single power supply Dimension: 99.83/69.63/9.3 mm (W/T/H) Compatibility: CE  and FCC standards

No additional device drivers are required. Flash in Disk (FiD) 2.5 SATA 6000 can be configured as a boot device.

Flash memory can be erased within a limited number of times. This number is called the erase cycle limit or write endurance limit and is defined by the flash array vendor. The erase cycle limit applies to each individual erase block in the flash device. InnoDisk FiD 2.5 SATA 6000 uses a wear-leveling algorithm to ensure that consecutive writes of a specific sector are not written physically to the same page/block in the flash. This spreads flash media usage evenly across all pages, thereby extending flash lifetime.

Operating Temperature Range Standard Grade: -100C ~ +700C Industrial Grade: -400C ~ +850C Storage Temperature Range Standard Grade: -550C to +950C

Reliability Test Conditions Vibration: 7 Hz to 2000Hz, 2 g, 3 axes Mechanical Shock Duration: 0.5ms, 1500 g, 3 axes Drop Unit: From a height of 1.5 m Product Condition MTBF (Hours): FiD 2.5 SATA6000 Telcordia SR-332 GB, 25 0CC > 3,000,000
