Disk on Module Hi-Speed DOM EDC4000 IDE 44Pin Vertical Wide Temp


Extremely light weight, reliable & performant, This new generation IDE Flash Module made of SLC Industrial Nand Flash Memory, is the most flexible solution to provide reliable storage on space limited and hostile environnment. Decreasing data access time and replacing any moving part from a traditional hard drive, the Flash Disk on Module fit the needs of a wide range of application.

100% Compatible with the Standard IDE ATA interface, this unit works exaclty like a standard hard drive but without any moving part, strongly increasing reliability and improving data access speed performance, without any noise.

Disk on Module Hi-Speed DOM EDC4000 IDE 44Pin Vertical Wide Temp


Industrial SLC

Wide Temperature Operating Range -40c to +85c

Why buy this IDE DOM Disk on Module 44 Pin Vertical from MemoryDepot.com?
Extremly reliable Flash SLC memory for your industrial application
Worldwide & Direct Access to Support & Engineering
Dedicated Sales Representative
Buy samples onlines and get competitive volume pricing
Product listing
  Capacity   Part#   Description   Online Order   Sample pricing
1 to 9 		  Quantity pricing
10+
  1GB
 DE4H-01GD31WXD  1GB EDC4000, Wide Temp Disk on Module DOM 44pin Hi-speed Contact us
  1GB
 DE4H-01GD31W1DB  1GB EDC4000, Wide Temp Disk on Module DOM 40pin Hi-speed Dual Channel [Version2] Contact us
  1GB
 DE4PX-01GD31W1DB  01GB EDC 4000 44-Pin Horizontal with Toshiba(Industrial, W/T Grade, -40 ~ 85?) Contact us
  1GB
 DE4PX-01GD31W1SB  01GB EDC 4000 44-Pin Horizontal with Toshiba(Industrial, W/T Grade, -40 ~ 85?) Contact us
  2GB
 DE4H-02GD31WXD  2GB EDC4000, Wide Temp Disk on Module DOM 44pin Hi-speed Contact us
  2GB
 DE4H-02GD31W1DB  2GB EDC4000, Wide Temp Disk on Module DOM 40pin Hi-speed Dual Channel [Version2] Contact us
  2GB
 DE4PX-02GD31W1DB  02GB EDC 4000 44-Pin Horizontal with Toshiba(Industrial, W/T Grade, -40 ~ 85?) Contact us
  4GB
 DE4H-04GD31WXD  4GB EDC4000, Wide Temp Disk on Module DOM 44pin Hi-speed Dual Channel Contact us
  4GB
 DE4H-04GD31W1DB  4GB EDC4000, Wide Temp Disk on Module DOM 40pin Hi-speed Dual Channel [Version2] Contact us
  4GB
 DE4PX-04GD31W1DB  04GB EDC 4000 44-Pin Horizontal with Toshiba(Industrial, W/T Grade, -40 ~ 85?) Contact us
  8GB
 DE4H-08GD31WXD  8GB EDC4000, Wide Temp Disk on Module DOM 44pin Hi-speed Dual Channel Contact us
  8GB
 DE4PX-08GD31W1DB  08GB EDC 4000 44-Pin Horizontal with Toshiba(Industrial, W/T Grade, -40 ~ 85?) Contact us
  16GB
 DE4H-16GD31W1DT  16GB EDC4000, Wide Temp Disk on Module DOM 44pin Hi-speed Dual Channel Contact us
  128MB
 DE4H-128D31WXS  128MB EDC4000, Wide Temp Disk on Module DOM 44pin Hi-speed Contact us
  128MB
 DE4H-128D31W1SB  128MB EDC4000, Wide Temp Disk on Module DOM 44pin Hi-speed [Version2] Contact us
  128MB
 DE4PX-128D31W1SB  128MB EDC 4000 44-Pin Horizontal with Toshiba(Industrial, W/T Grade, -40 ~ 85?) Contact us
  256MB
 DE4H-256D31WXS  256MB EDC4000, Wide Temp Disk on Module DOM 44pin Hi-speed Contact us
  256MB
 DE4H-256D31W1SB  256MB EDC4000, Wide Temp Disk on Module DOM 40pin Hi-speed [Version2] Contact us
  256MB
 DE4PX-256D31W1SB  256MB EDC 4000 44-Pin Horizontal with Toshiba(Industrial, W/T Grade, -40 ~ 85?) Contact us
  512MB
 DE4H-512D31WXS  512MB EDC4000, Wide Temp Disk on Module DOM 44pin Hi-speed Contact us
  512MB
 DE4H-512D31W1SB  512MB EDC4000, Wide Temp Disk on Module DOM 40pin Hi-speed Single Channel [Version2] Contact us
  512MB
 DE4PX-512D31W1SB  512MB EDC 4000 44-Pin Horizontal with Toshiba(Industrial, W/T Grade, -40 ~ 85?) Contact us






Specifications

Note: The difference between Single Channel and Dual Channel impact on the speed only, where the Dual Channel offer twice the read/write transfer speed performance compared to the single channel, since they are made of 2 chips that can be accessed simultaneously. This does not affect the compatibility and both models will be similarly recognised by the motherboard..

Embedded Disk Card 4000 (EDC4000) products provide high capacity solid-state flash memory that electrically complies with the Personal Computer Memory Card International Association ATA standard. InnoDisk Embedded Disk Card 4000 (EDC4000) is embedded solid-state data storage systems for industrial work place. Embedded Disk Card 4000 (EDC4000) features an extremely light weight, reliable, low-profile form factor. Embedded Disk Card 4000 (EDC4000) supports advanced PIO (0-4), Multi Word DMA (0-2), Ultra DMA (0-4) transfer modes, multi-sector transfers, and LBA addressing.

General Specifications

  • interface 40pin or 44pin IDE/ATA
  • Drive Config. Jumper Switch Master/Slave
  • IDE Transfer Mode PIO mode 0-4/ MwDMA mode 0-2/UDMA mode 0-4
  • Burst Speed Rate 66.6MB/sec.
  • Operation Temp -40c + 850C
  • Storage Temp -55c~+95c
  • Humidity 100 to C950 non-condensing
  • Vibration 5G(7~2000Hz)
  • Shock 50G/10ms
  • ECC Technology High reliability base on the internal ECC function
  • MTBF >3,000,000 hours
  • R/W Endurance 2,000,000 times
  • DC Input Voltage +3.3V~+5V single power supply operation
  • Power Mode Auto stand-by mode
    Performance

    Dual Channel Performance:
  • Sustained Read : 40MB/sec
  • Sustained Write : 20MB/sec

    Single Channel Performance:
  • Sustained Read : 20MB/sec
  • Sustained Write : 10MB/sec

    Note: Single Channel and Dual Channel configuration is only a memory configuration and does not affect compatibily with the standards. The only difference between the 2 configurations is the performance

    Environmental Test

    Reliability Test conditions Reference Standards
    Vibration 7 Hz to 700 Hz, 2 g, 3 axes IEC 68-2-6
    Mechanical Shock Duration: 0.5ms, 1500 g, 3 axes IEC 68-2-27
    Unit Drop From a height of 1.5 m IEC 68-2-32


    Endurance

    Conditions: Telcordia SR-332 GB, 250C, > 3,000,000 Hours

  • Read Cycles: Unlimited Read Cycles.
  • Write /Erase Cycles: 2,000,000 Erase Cycles.
       >150 years @ 50GB write-erase /day
  • Data Retention: 10 years.
  • Wear-Leveling Algorithm: support.
  • Bad Blocks Management: Support
  • Error Correct Code: Support

  • Operating Temperature Range:
    - Wide Temp Grade: -40c to 85c
  • Storage Temperature Range:
    - Wide temp Grade: -45c to +95c

    Flash memory can be erased a limited number of times. This number is called the erase cycle limit or write endurance limit and is defined by the flash array vendor. The erase cycle limit applies to each individual erase block in the flash device.
    EDC4000 uses a wear-leveling algorithm to ensure that consecutive writes of a specific sector are not written physically to the same page in the flash. This spreads flash media usage evenly across all pages, thereby maximizing flash lifetime.

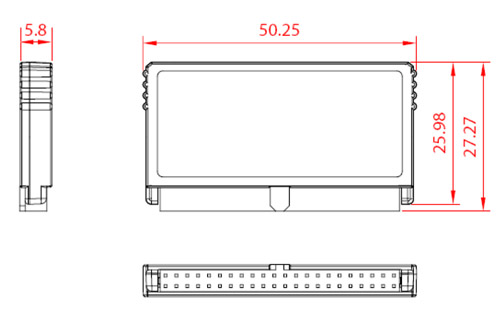

    Mechanical Specs
